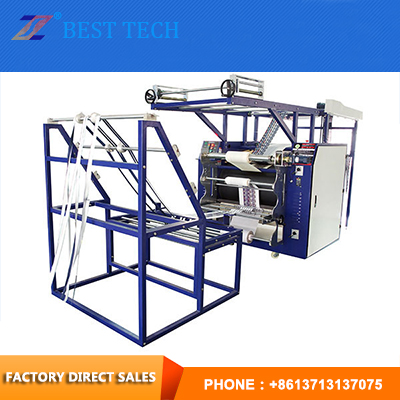

Roller - sublimation transfer machine
The machine can be customized according to the customer's requirement, and the inflatable shaft can be selected and released.
The basic parameters of the machine (detailed parameters to prevail in kind):
| Product number | ZS-BB 600mm | Drum diameter | Single layer roller 420mm |
| The drum is actually wide | 800mm | Effective transfer width | 600mm |
| heating method | Heating pipe heating oil heat | Blanket production materials | Import "DuPont" raw materials joint venture plant in Shanghai production |
| Machine current | 20A | Machine power | 12KW |
| Winding method | Ordinary double-roll to close the end of paper and paper | Host size | 1600×1000×1400(mm) |
| Work frame size | 1500×700×900(mm) | Machine size | 3100×1000×1400(mm) |
ZS-BB600-type ribbon transfer machine double-sided printing Features:
1. Blanket imported "DuPont" raw materials, production plant in Shanghai joint venture, the thickness of 10 PCT, transfer effect, and long service life.
2. The use of 100% seamless tube drum, drum, outside the Seiko lathe, drum outside the Seiko grinder, and then iron dragon, to ensure that the temperature of each point in line. Taiwan's stainless steel heating pipe direct heating layer, 45 minutes to 1 hour can be heated to 200 degrees.
3. The main wall (electric box) with 10 PCT thick steel plate production.Wire cutting, high precision, the error is smaller.
4. Each offset shaft is lathe, grinder, and then platinum. Error control in the 2 C. Within the normal work of the blanket does not go astray.

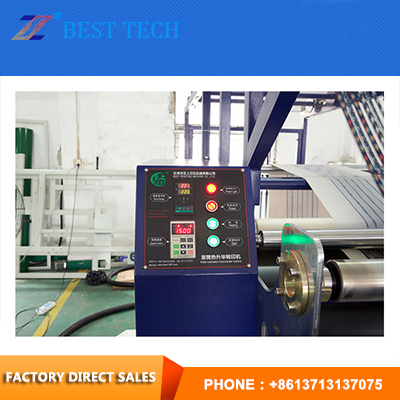

5. Electrical control. High-quality digital display, temperature, time control, higher accuracy
6. Imported variable-speed motor, according to the transfer of different materials to adjust the speed.
7. Carbon brush conductive heating, conductive properties more stable and safe.
8. blanket with off-type, when the power outage or shutdown, the manual operation of the blanket and roller to separate the blankets to better protect the blanket and extend its life.
9. The machine adopts 3 put 2 receive function. Can be customized according to customer requirements. Optional inflatable shaft close / release, positioning better.
10. Automatic shutdown function, set the automatic idle time can be shut down for the staff to save time.
11. Independent positioning frame (detachable), more accurate positioning.
12. Multi-functional roller ribbon transfer machine suitable transfer: small pieces, ribbon, cord, shoelaces, mobile lanyard, pet belt, zippers and so on.
1. Blanket imported "DuPont" raw materials, production plant in Shanghai joint venture, the thickness of 10 PCT, transfer effect, and long service life.
2. The use of 100% seamless tube drum, drum, outside the Seiko lathe, drum outside the Seiko grinder, and then iron dragon, to ensure that the temperature of each point in line. Taiwan's stainless steel heating pipe direct heating layer, 45 minutes to 1 hour can be heated to 200 degrees.
3. The main wall (electric box) with 10 PCT thick steel plate production.Wire cutting, high precision, the error is smaller.
4. Each offset shaft is lathe, grinder, and then platinum. Error control in the 2 C. Within the normal work of the blanket does not go astray.
5. Electrical control. High-quality digital display, temperature, time control, higher accuracy
6. Imported variable-speed motor, according to the transfer of different materials to adjust the speed.
7. Carbon brush conductive heating, conductive properties more stable and safe.
8. blanket with off-type, when the power outage or shutdown, the manual operation of the blanket and roller to separate the blankets to better protect the blanket and extend its life.
9. The machine adopts 3 put 2 receive function. Can be customized according to customer requirements. Optional inflatable shaft close / release, positioning better.
10. Automatic shutdown function, set the automatic idle time can be shut down for the staff to save time.
11. Independent positioning frame (detachable), more accurate positioning.
12. Multi-functional roller ribbon transfer machine suitable transfer: small pieces, ribbon, cord, shoelaces, mobile lanyard, pet belt, zippers and so on.
